Touch Screen - IK10 Touchscreen a drop of water falling on a clear surface

IK10 touch screen

Rugged impact resistant vandalism-resistant

What is an IK10 touchscreen?

Impact-resistant rugged touchscreen

When installed Impactinator® IK10 touchscreens have impact resistance with severity level IK10 according to standard EN/IEC 62262. The touchscreen resists 20 joules of impact energy on the IK10 test.

Size chart PCAP touch screen

SizeProduct nameAspect ratioGlass thicknessGlass typeLaminateController type
7.0"IX-TP070-2828-A0116:95.8 mmImpactinator 8002828COF
10.1"IX-TP101-2828-A0116:105.8 mmImpactinator 8002828COF
10.4"IX-TP104-2828-A014:35.8 mmImpactinator 8002828COB
12.1"IX-TP121-2828-A014:35.8 mmImpactinator 8002828COB
12.1"IX-TP121-2828-B0116:105.8 mmImpactinator 8002828COF
15.0"IX-TP150-2828-A014:35.8 mmImpactinator 8002828COB
15.6"IX-TP156-2828-A0116:95.8 mmImpactinator 8002828COB
18.5"IX-TP185-2828-A0116:95.8 mmImpactinator 8002828COB
19.0"IX-TP190-2828-A015:45.8 mmImpactinator 8002828COB
21.5"IX-TP215-2828-A0116:95.8 mmImpactinator 8002828COB
23.8"IX-TP238-2828-A0116:95.8 mmImpactinator 8002828COB
24.0"IX-TP240-2828-A0116:95.8 mmImpactinator 8002828COB

IMPORTANT

Our IK10 touchscreen must be professionally integrated to achieve optimum performance. Please talk to our specialists in the concept phase. This way, you can achieve maximum performance at minimum costs with a particularly short development cycle. Of course, if you do not want to install the IK10 touchscreen yourself or would like further processing steps, we will gladly take over these services for you.

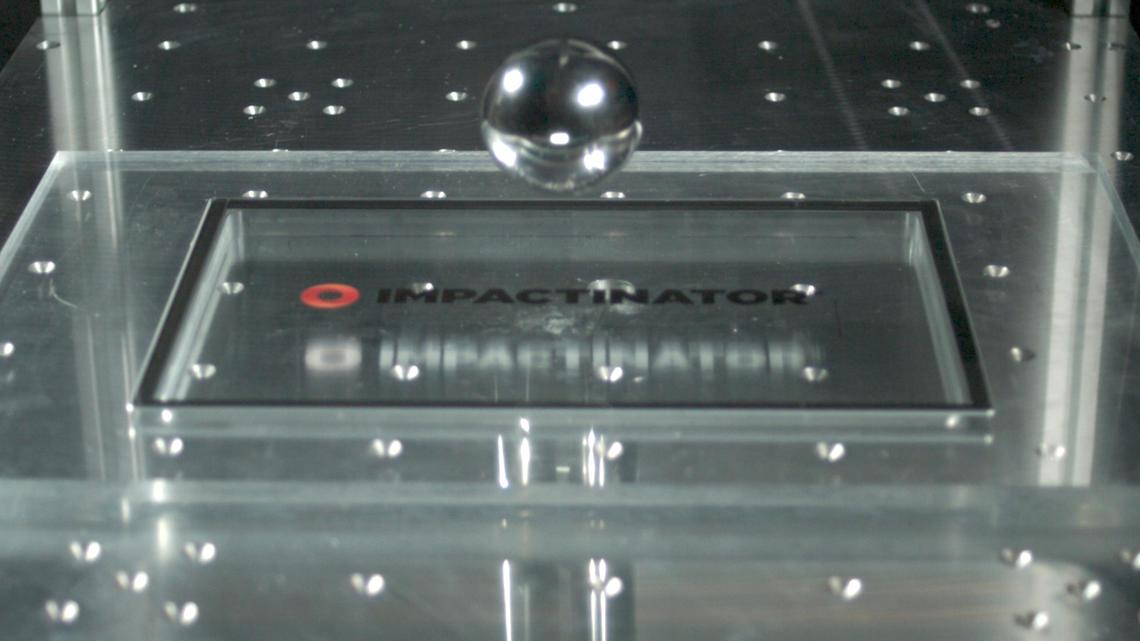

IK10 Touchscreen

15.6" IK10

Touchscreen

Drop height 200 cm

Ball weight 2.00 kg

Glass thickness 2.8 mm

Impact energy 40 Joule

Shock resistance IK protection rating

Standard EN 62262 outlines how well electrical equipment can withstand external mechanical impacts. It measures the resistance or impact strength of the equipment when subjected to specific shocks. This standard helps ensure that the equipment remains functional and safe under various conditions. By adhering to EN 62262, manufacturers can guarantee the durability and reliability of their products, making it easier for consumers to trust and choose equipment that meets high safety and performance standards.

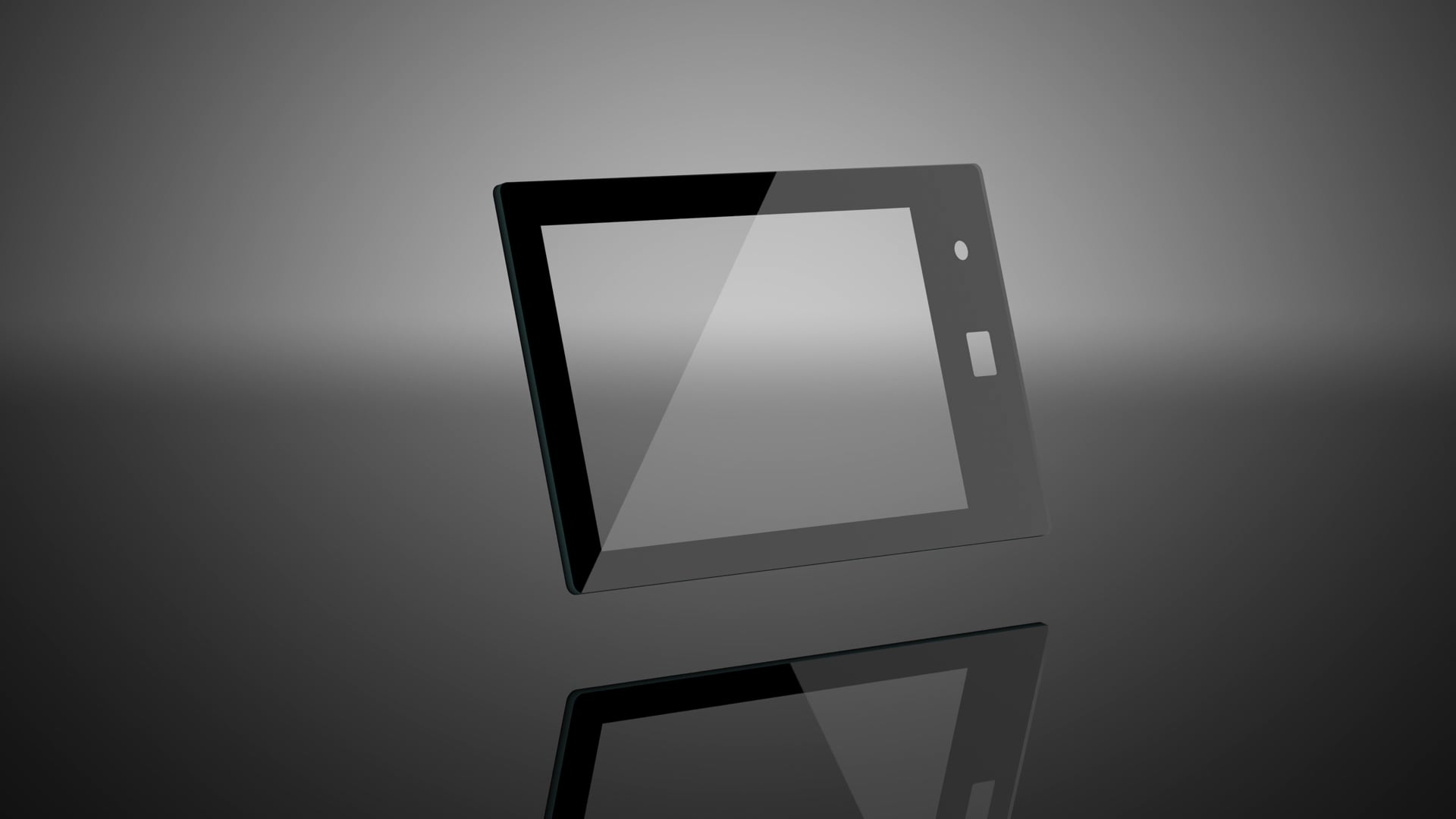

Custom touch screen
PCAP Touch Screen - Custom touch screen a black tablet with a white screen

Custom touch screen

PCAP touch screen - touch display - industrial touch - display module
Individual and efficient

We provide custom touch screens utilizing industry-proven solutions. Our offerings include ready-made designs that can be easily adapted to meet your specific needs. By choosing our solutions, you significantly lower your total cost of ownership and dramatically reduce your research and development time. Experience efficiency and excellence with our innovative touch screen technology.

Industrial Monitor - Industrial Monitors a screen shot of a tablet
advanced industrial and medical monitors

Our aim was to create unique industrial monitors for future industrial machinery and medical devices with a special design, outstanding image quality, intelligent functionality, and an excellent price-performance ratio. Our monitor platform is a modular system that’s easy to customize while ensuring quick delivery. Every monitor undergoes rigorous testing to ensure high quality. All design and production are managed by Interelectronix, combining innovation with reliability to meet the demanding needs of tomorrow’s technology.

Industrial Monitor - IK10 Monitor Rugged a black tablet with a screen showing blue and yellow paint
Impact resistant according to EN62262

Impactinator® rugged IK10 monitors are designed to withstand significant impacts, meeting the stringent requirements of IEC 60068-2-75 and IEC 62262 standards. Featuring IK10 glass, they can resist up to 20 Joules of bullet impact. We provide a range of proven standard solutions and can also customize extremely impact-resistant and robust monitors to suit your specific application needs. Our products ensure reliable performance in the toughest conditions, offering unparalleled durability and resilience.

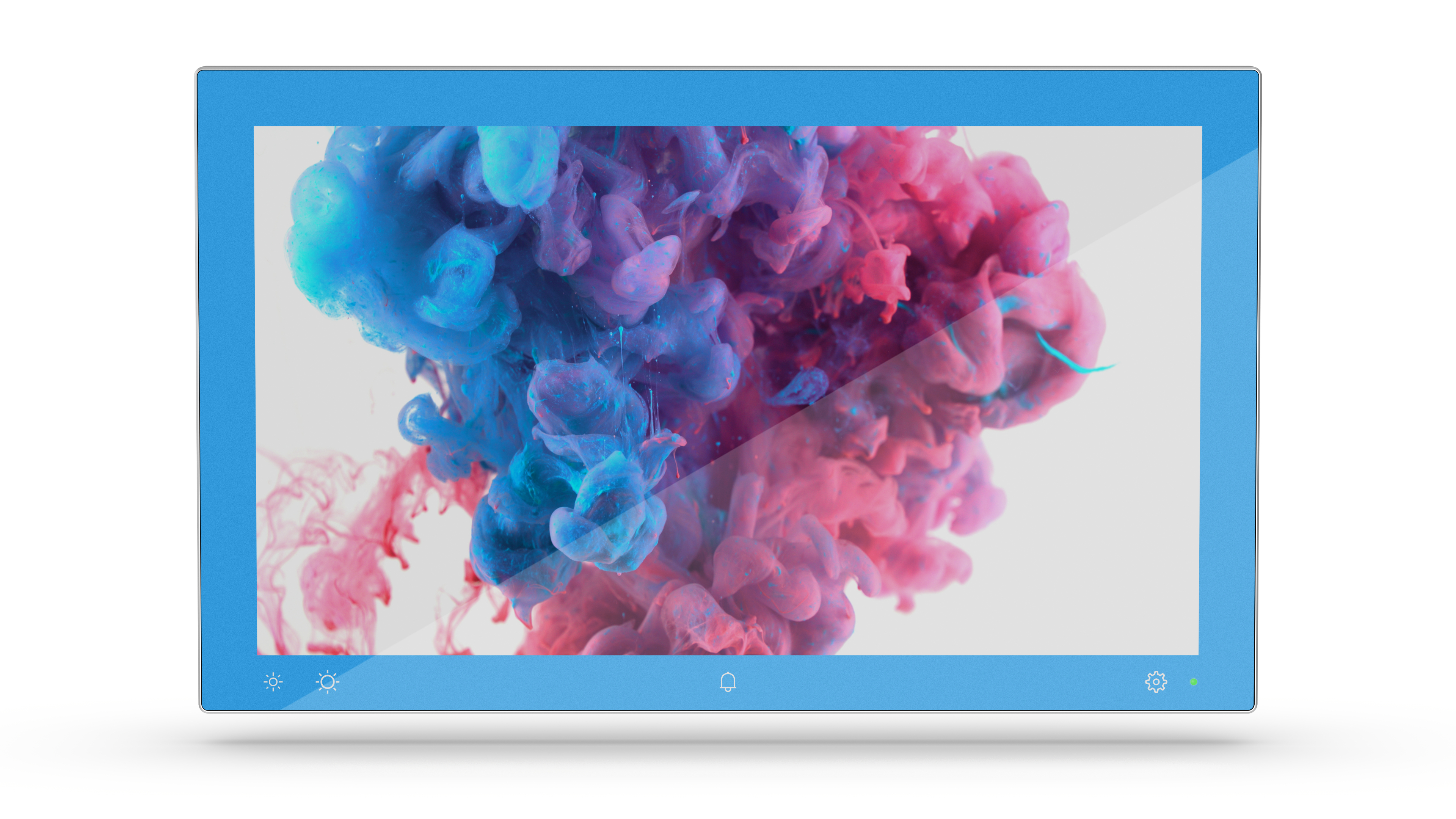

Industrial Monitor - Custom industrial monitor a screen shot of a tablet
Individual touch monitor displays

Discover endless possibilities to design your industrial monitor, uniquely tailored to your style and brand identity. Customize with bright, vibrant colors, premium high-quality materials, a sleek enclosure with rugged glass, and cutting-edge innovative electronics. Unleash your creativity and personalize every aspect of your monitor. Reflect your personality and enhance your brand’s visual appeal with bold colors and advanced tech. Dive into the world of possibilities and create a standout monitor that showcases your brand’s uniqueness. Let your design preferences shine and make your mark.
